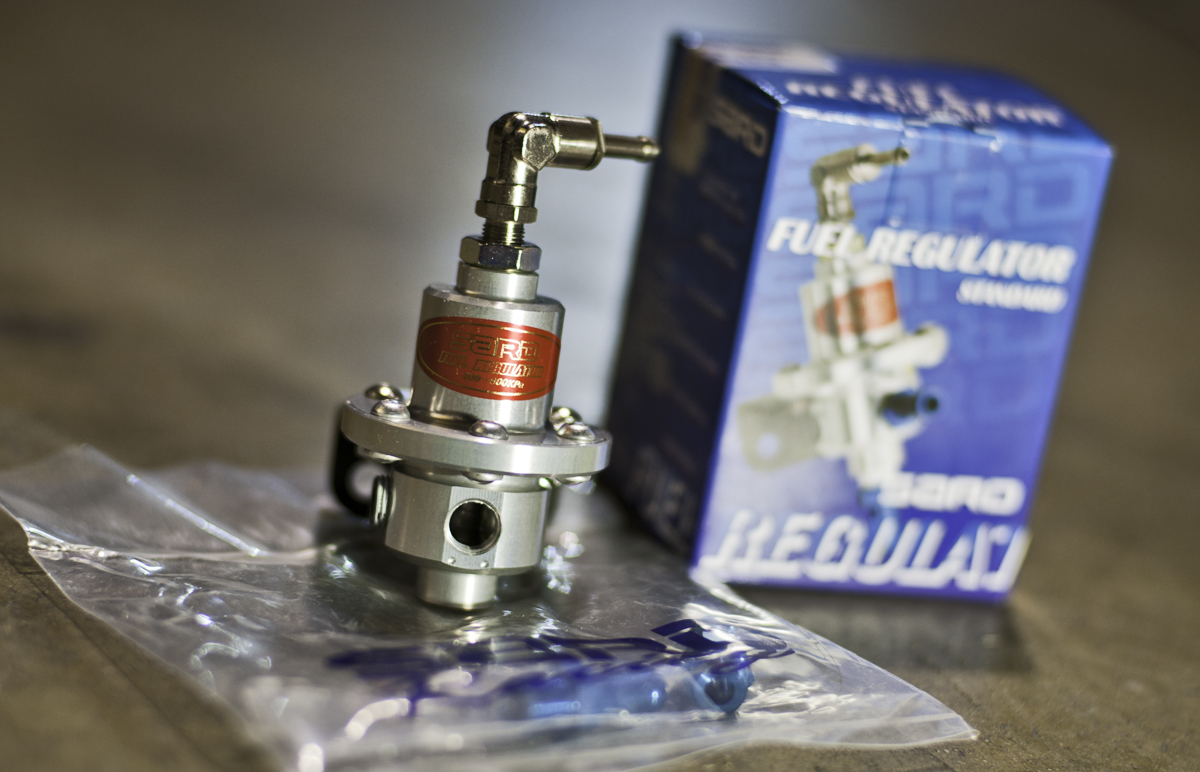

SARD Fuel Pressure Regulator install!

Happy thanksgiving! I had a chance to install the SARD Fuel Pressure Regulator on my Civic. Sean from Narita Dog Fight was kind enough to take some photos during the install so today i would like to show you guys how easy it is to install!

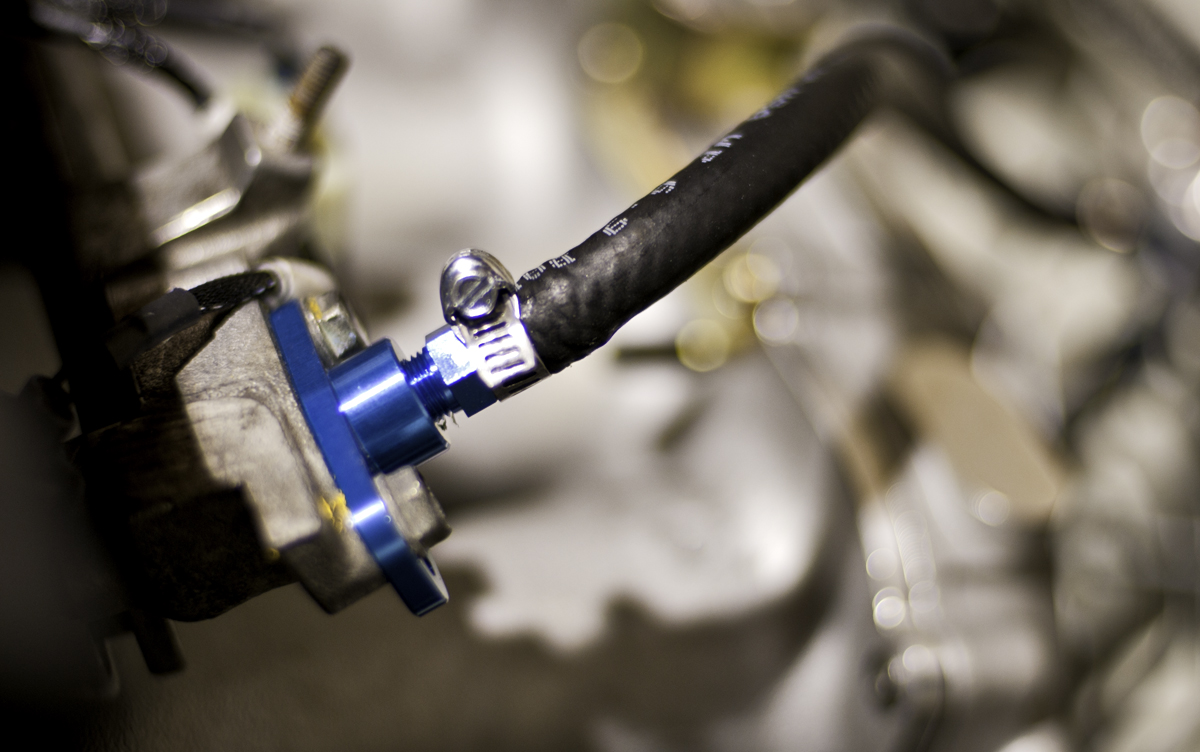

First we remove the original fuel pressure regulator on the fuel rail and replace it with the SARD application specific adapter, in this case: part #XA69017.

This adaptor allows the use of a 1/8 NPT nipple to which we connect a 1/4″ fuel line.

Then we mounted the fuel pressure regulator to the firewall

We then run 1/4″ fuel line from the adaptor to the regulator’s inlet and run the original return line to the outlet (located on the bottom of the regulator).

All that is left to do at that point is to plug the vaccum line that went to the original fuel pressure regulator into the new SARD fuel pressure regulator and we are all done!
